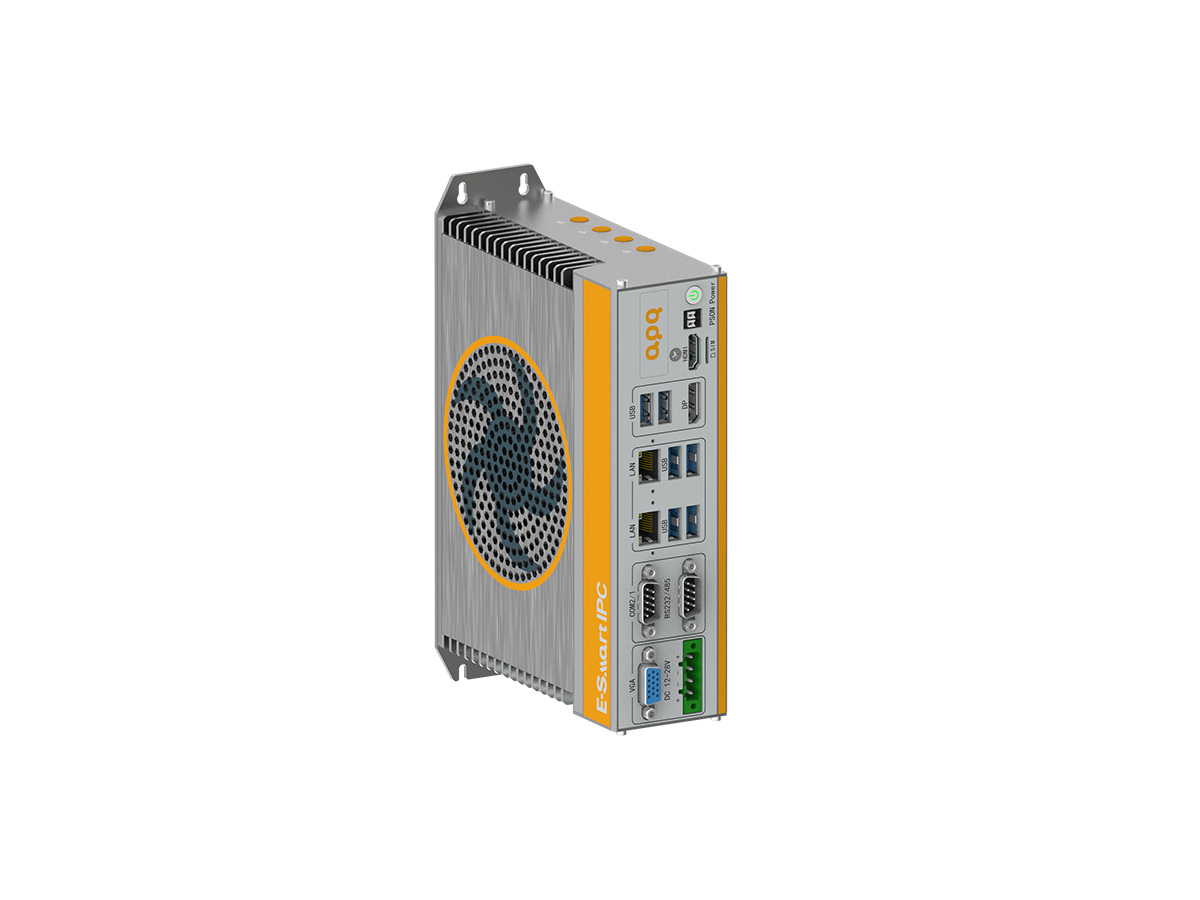

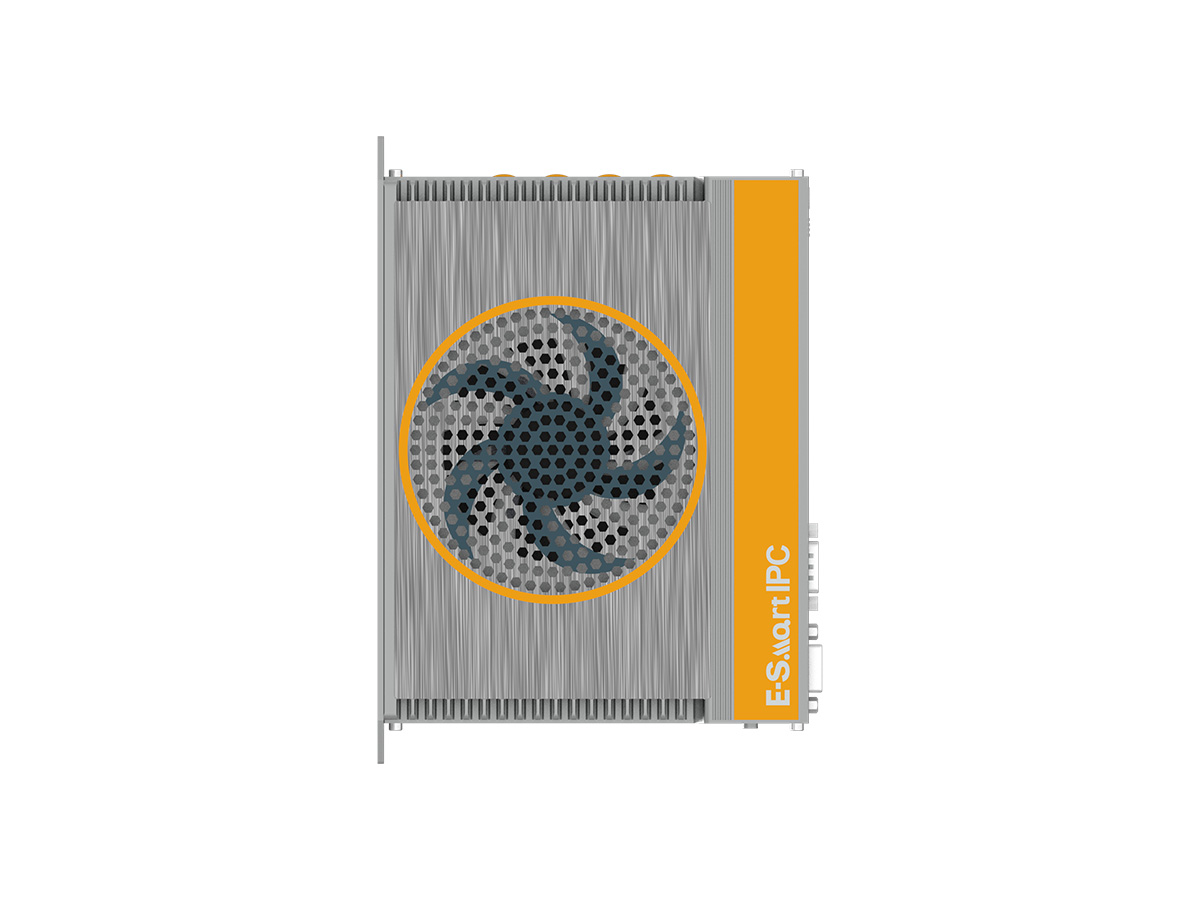

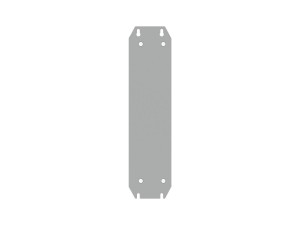

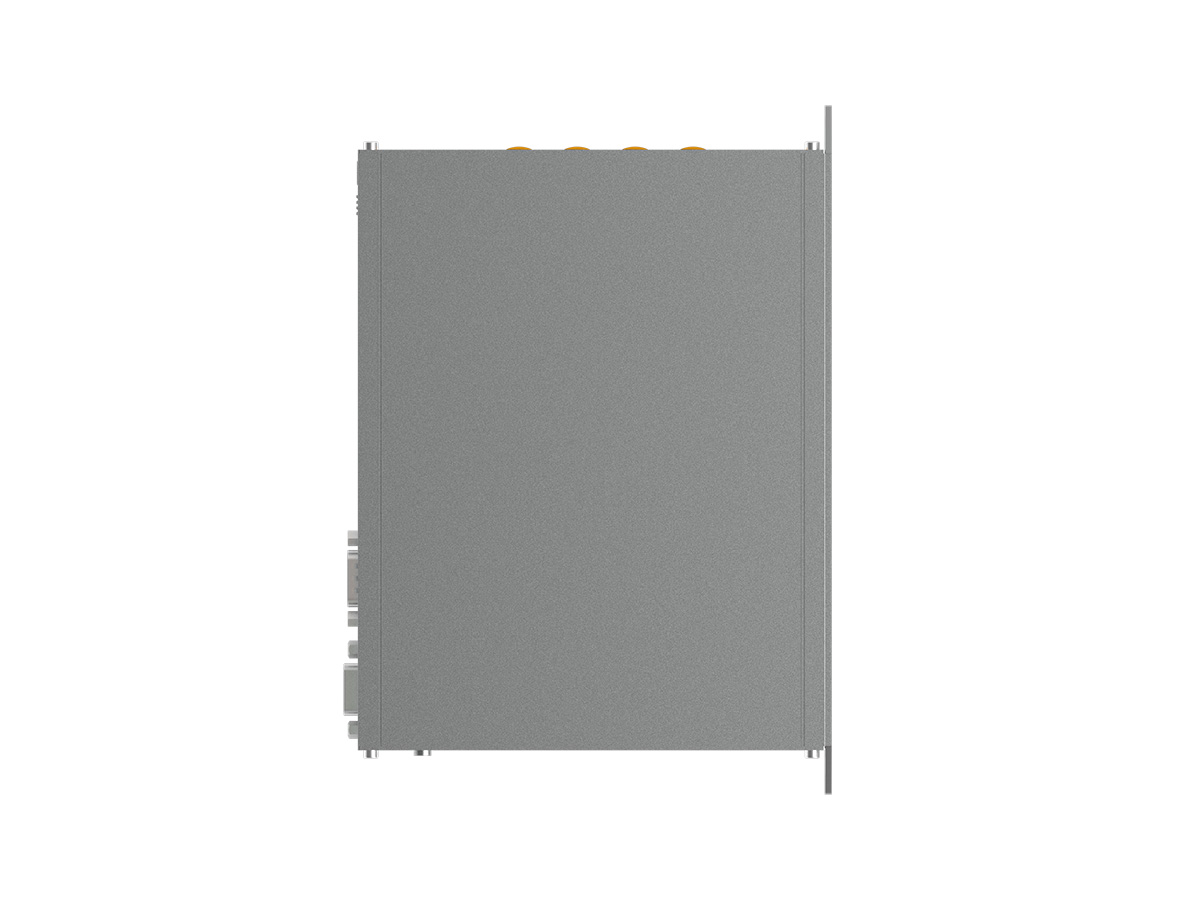

阿普奇AK7A2-Q170&H110 | 運動控制器/嵌入式工控機/Intel 6~9th桌面CPU

阿普奇AK7A2-Q170&H110 | 運動控制器/嵌入式工控機/Intel 6~9th桌面CPU

特點:

  • 支持Intel? 6~9th Gen CoreTM i3/i5/i7 Desktop CPU
  • 搭配Intel? Q170/H110芯片組
  • 2個DDR4 SO-DIMM插槽，最大支持 64GB
  • HDMI、DP、VGA三路顯示輸出
  • 2個Intel千兆網絡接口
  • 支持WiFi/4G無線擴展
  • 支持多種APQ擴展彈匣
  • 內置USB 2.0 Type-A便于安裝加密狗
  • 支持桌面式、壁掛式、DIN導軌
  • 12~28V直流供電

  • 遠程管理

    遠程管理

  • 狀態監控

    狀態監控

  • 遠程運維

    遠程運維

  • 安全控制

    安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

產品介紹

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model

AK7170A2

AK7110A2

CPU

 CPU Intel??6~9th?Generation CoreTM?Desktop Processor
? TDP 65W
? Socket LGA1151

Chipset

 Chipset Intel??Q170 Intel??H110

BIOS

 BIOS AMI UEFI BIOS

Memory

 Socket 2 * SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz
? Max Capacity 32GB, Single Max. 16GB

Graphics

 Controller Intel??HD Graphics530/Intel??UHD Graphics 630(Dependent on CPU)

Ethernet

 Controller 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel??i219-LM GbE LAN Chip (10/100/1000 Mbps)		 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel??i219-LM GbE LAN Chip (10/100/1000 Mbps)

Storage

 M.2 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2280) 1 * M.2 Key-M (SATA3.0, 2280)

Expansion

 Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0)
1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)		 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)
? Optional Primary Cabinet 1A/1B/1C/1D/1E/2A/3A 1E
? Optional Secondary Cabinet 1E 1E

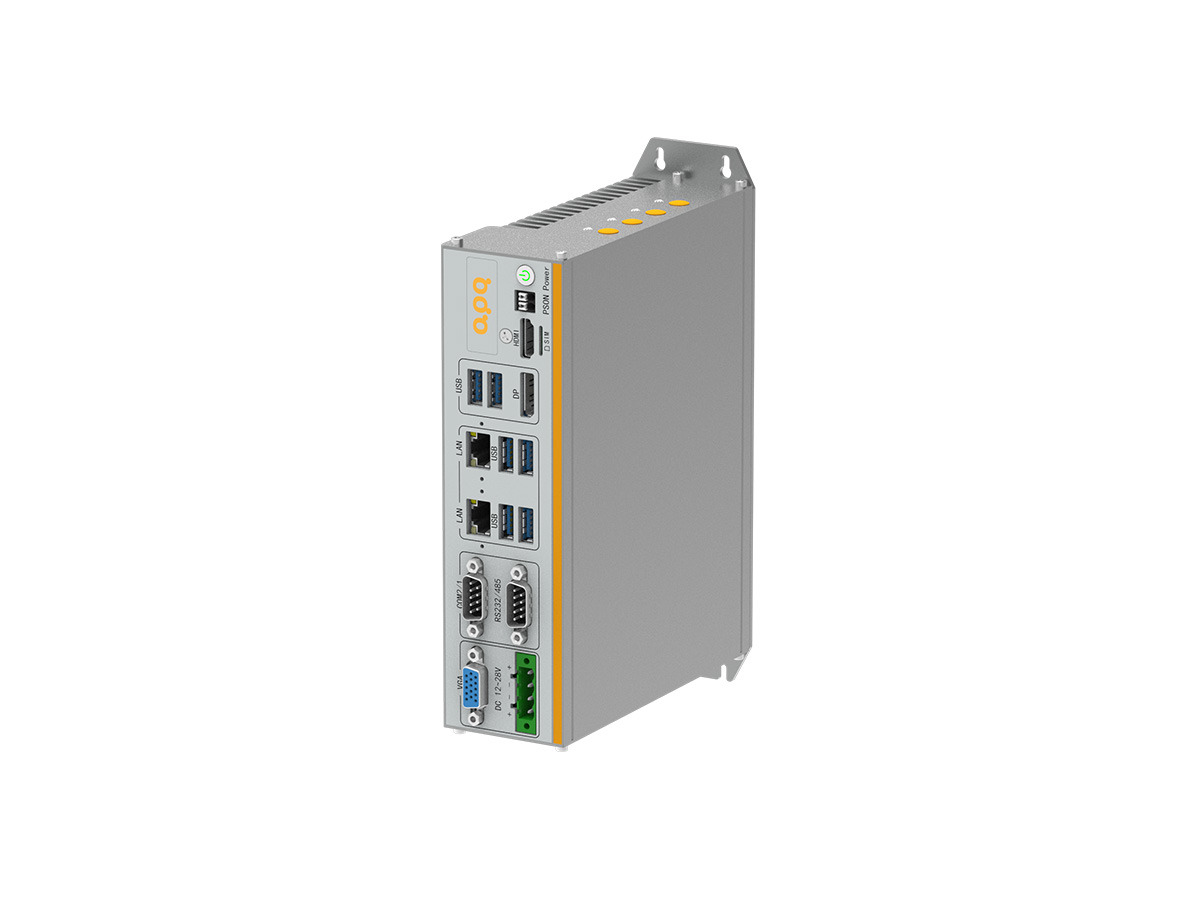

Front I/O

 USB 6 * USB3.0 (Type-A) 4?* USB3.0 (Type-A)
2 * USB2.0 (Type-A)
? Serial 2 * RS232/485 (COM1/2, DB9/M, Full lanes)
? Display 1 * HDMI: max resolution up to 4096*2304 @ 24Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
1 * VGA: max resolution up to 1920*1200 @ 60Hz
? Ethernet 2 * RJ45
? Power 1 * DC Power Input
? SIM 1 * Nano SIM Card slot (Mini PCIe module provide functional support)
? Button 1 * Power Button + Power LED
1 * PS_ON Connector

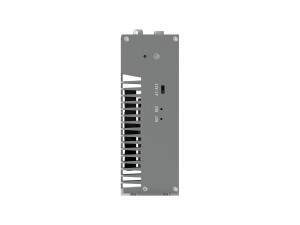

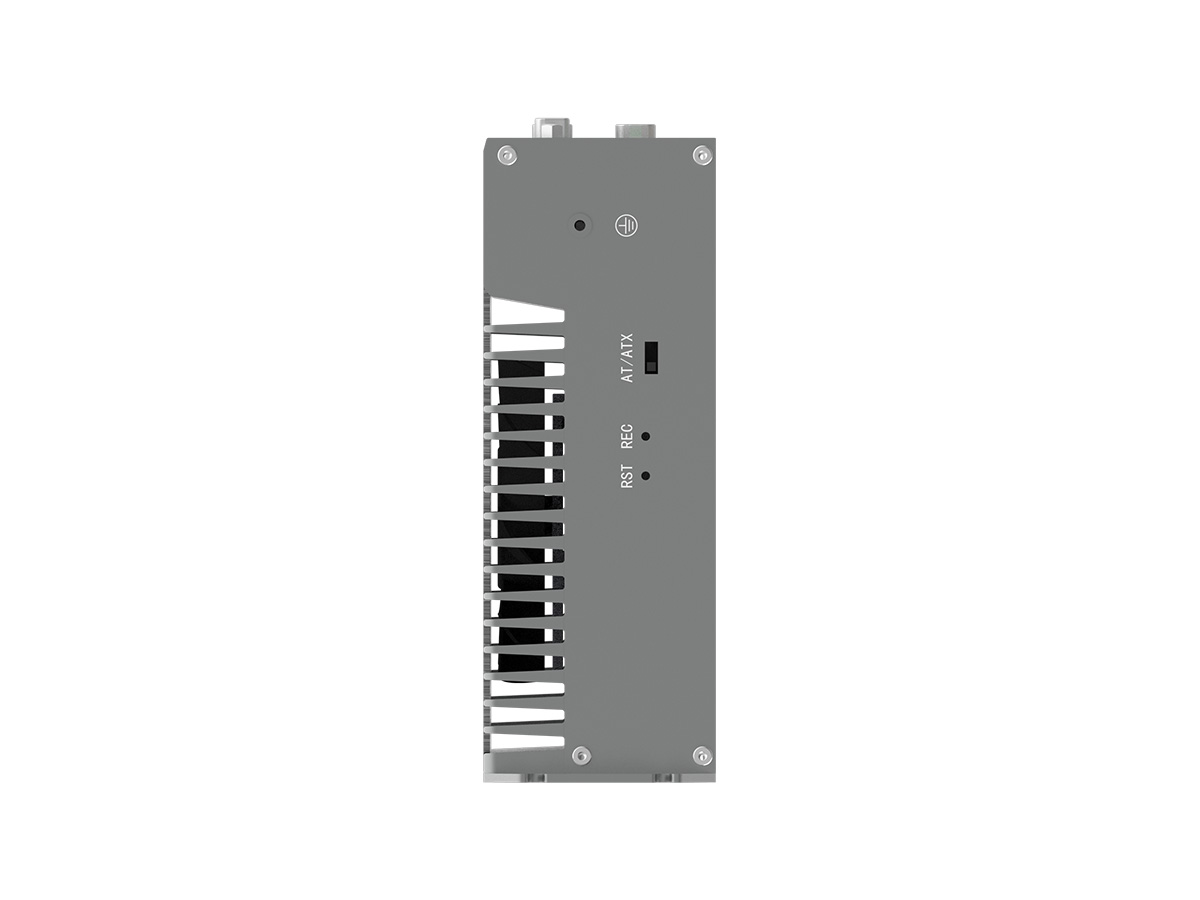

Bottom I/O

 Switch 1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
? Button 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS)
1 * OS Rec (system recovery)

Power Supply

 Type DC
? Power Input Voltage 12 ~ 28VDC
Note：When using the light source?and POE, 24V input must be used.
? Connector 1 * 4Pin Power Input Connector (P= 5.08mm)
? RTC Battery CR2032 Coin Cell

OS Support

 Windows 6/7th Core?: Windows 7/10
8/9th Core?: Windows 10
? Linux Linux

Watchdog

 Output System Reset
? Interval Programmable via Software from 1 to 255 sec

Mechanical

 Enclosure Material Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC
? Dimensions 53mm(L) * 145mm(W) * 186.4mm(H)

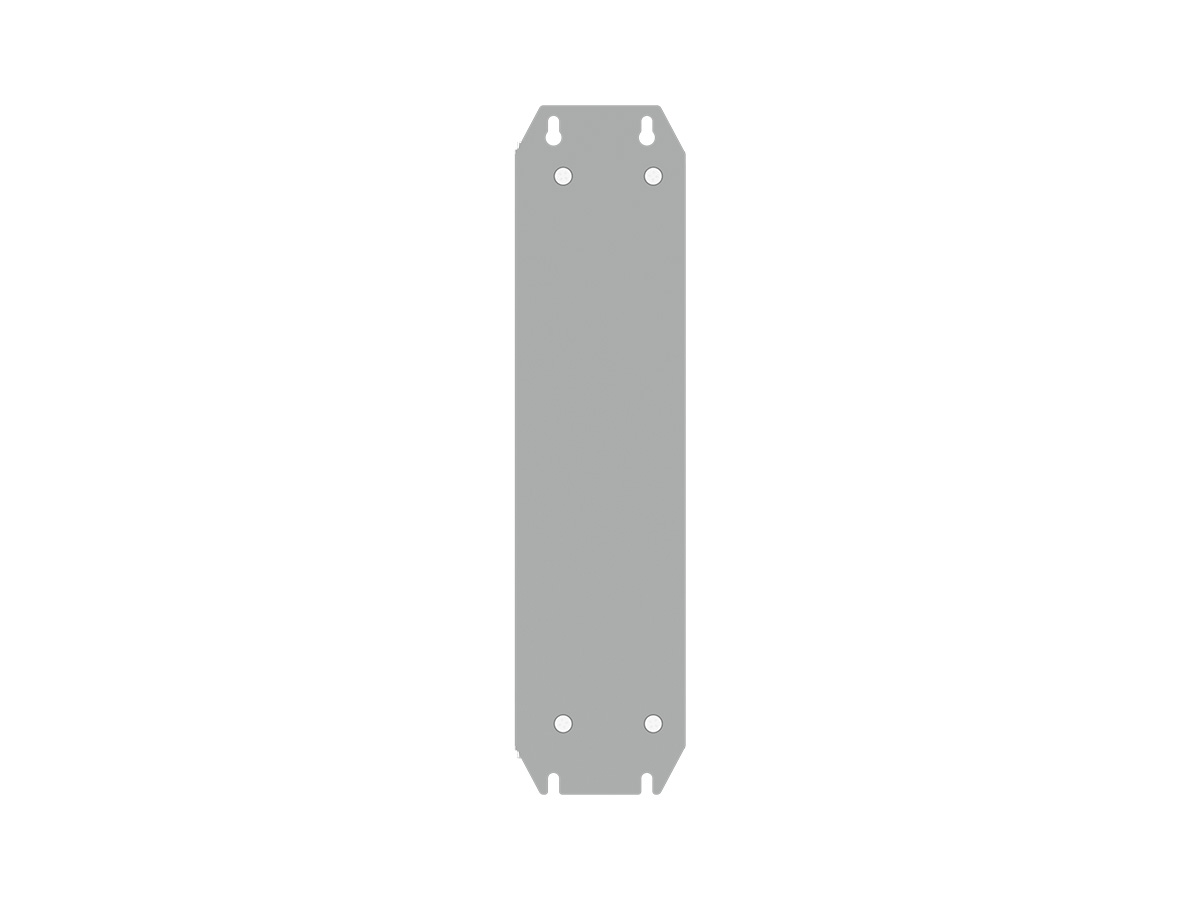

? Mounting Wall mounted, DIN, Desktop

Environment

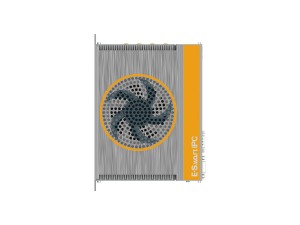

 Heat Dissipation System PWM Air Cooling
? Operating Temperature -20~60℃?(Industrial SSD)
? Storage Temperature -40~80℃?(Industrial SSD)
? Relative Humidity 5 to 90% RH (non-condensing)
? Vibration During Operation With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
? Shock During Operation With SSD: IEC 60068-2-27 (30G, half sine, 11ms)

圖片1圖片2圖片3圖片4圖片5

  • AK7170系列 機器人控制器
